Cream 2-part Methacrylate Adhesive ~ W4S 55320 (500ml 10:1 Mix / F-System)

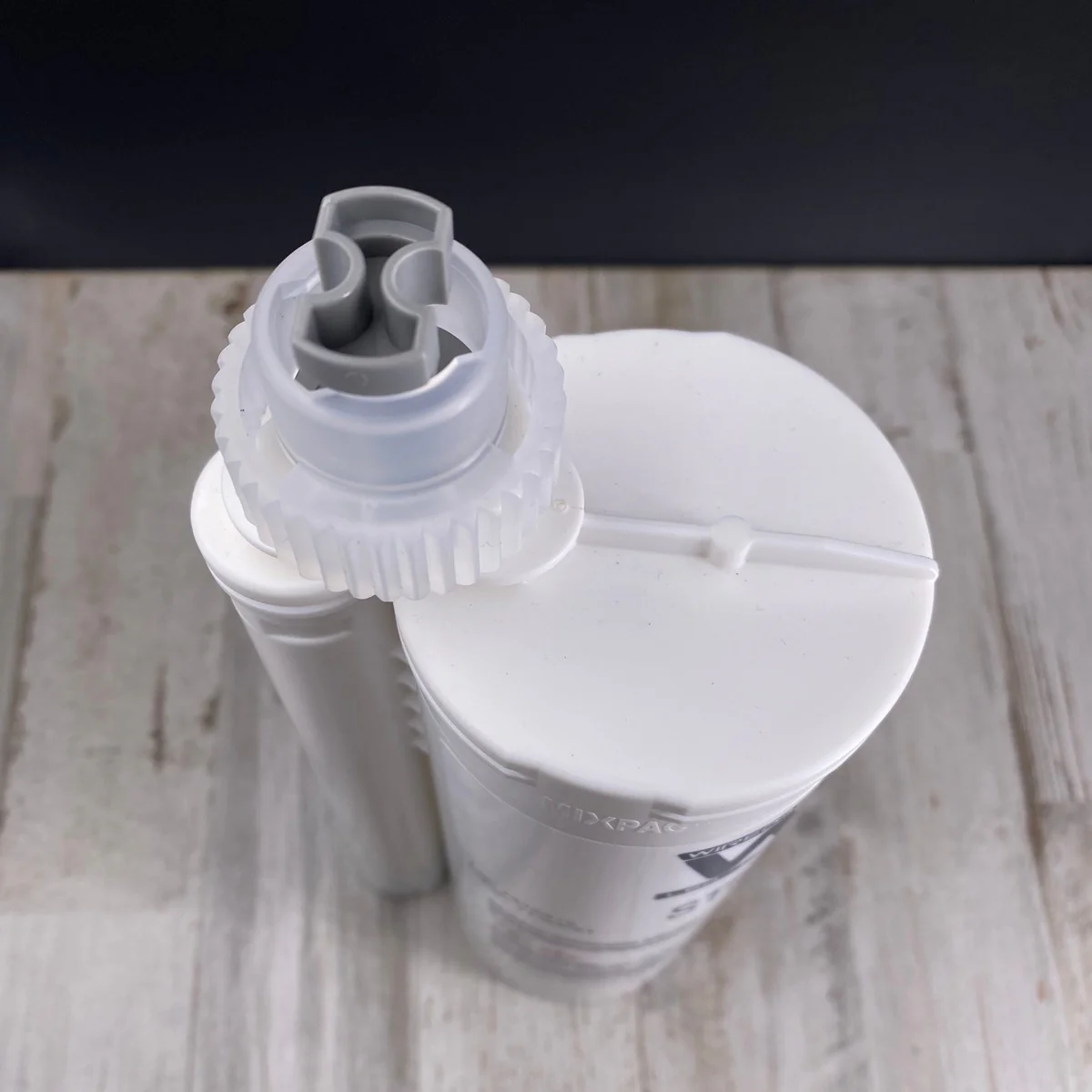

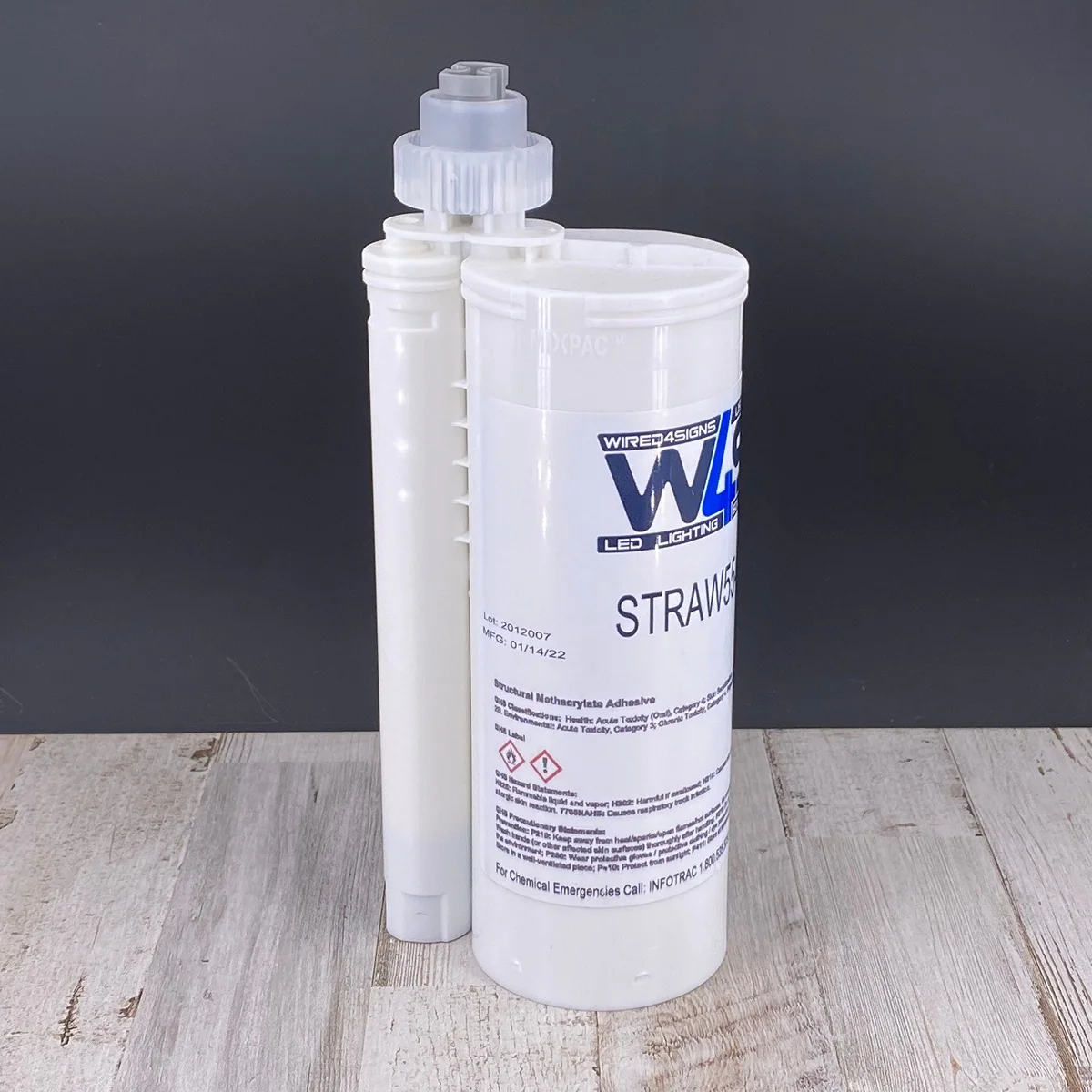

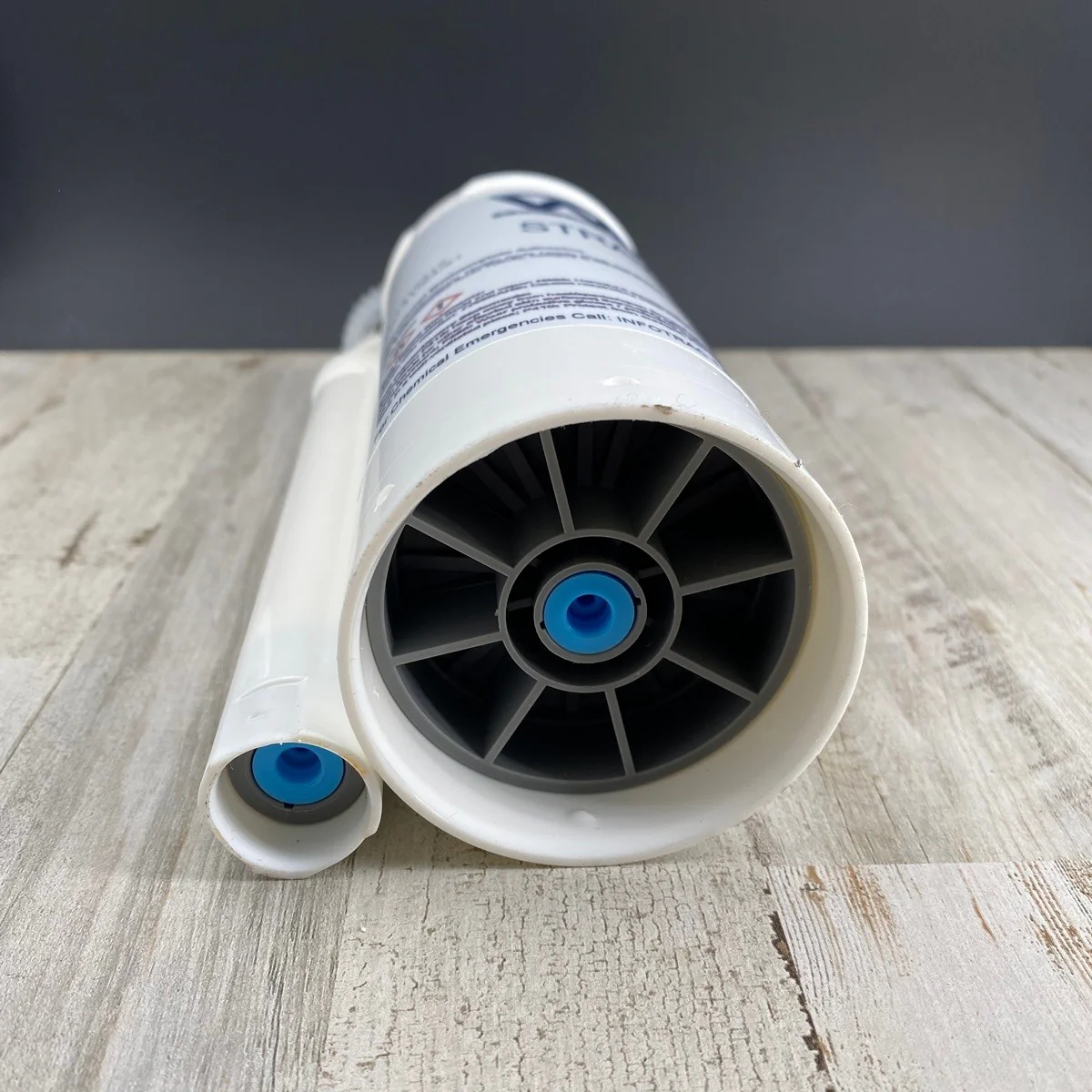

Adhesive cartridge with static mixer ~ applicator gun sold separately
Description
W4S 2-part Methacrylate Adhesive (490ml 10:1 Mix)
Wired4Signs USA has worked together with a leading USA adhesives manufacturer to develop a 2-part Plastic Epoxy methacrylate adhesive to bond most substrates such as steel, aluminum, Plexiglass (Acrylics) and Polycarbonate, PET, ABS, and other plastics. This glue is widely used for display, sign, electronics, bathtub, marine, fiberglass and other industrial bonding applications.
See the advantages on the following blog and also see our blog on structural bonding vs mechanical fastening.
Key features
- Flexible - tolerates significant substrate movement (thermal expansion, vibration, etc.)
- Good gap filling
- Long working time
General specifications
- Color: Cream
- Package size: 500 ml
- Mix ratio: 10:1
- Mixer system: F-System
- Suitable materials:
- Steel & stainless steel
- Aluminum
- Fiberglass
- Various plastics, including ABS, PVC, PET, acrylics, and polycarbonate (not low-surface-energy plastics)
- Working time: 8–12 minutes (@ 24°C)
- Handling strength: 25–30 minutes (@ 24°C)
- Gap fill: 3/8" (9.5 mm)
- Shelf life: 12 months
- UV stable: No
- Viscosity (Brookfield T Bar): 113,000 – 155,000 cP (Like creamy peanut butter)
- Resin: 120,000 – 160,000 cP
- Activator: 50,000 – 100,000 cP
- Tensile strength (ASTM D638):
- Fiberglass surfaces: 17+ MPa / 1000+ psi (substrate failure)
- ABS/PVS sheeting: 7+ MPa / 1000+ psi (substrate failure)
- Steel/Stainless steel: 17–24 MPa / 2500–3500 psi
- Aluminum: 17–24 MPa / 2500–3500 psi
- Lap shear strength (ASTM D1002): Unknown
- Chemical resistance:
- Resistant to:
- Hydrocarbons
- Acids and bases
- Vinegar
- Wine and condiments
- Most household foods
- Susceptible to:
- Polar solvents
- Super-strong acids and bases
- Resistant to:
Downloads
Important information
- This product is manufactured in the USA and we ship stock out of Knoxville, TN, USA.
- Please contact us directly for bulk pricing or custom labeling options.
- This cartridge is supplied with one static mixer nozzle. Additional disposable mixers are available from the accessories below.
- This cartridge will require a reusable dispensing gun. Please order from the accessories below.
- The static mixers are disposable and last the set time of the glue. So as long as you keep the product moving the nozzles will work.
- This adhesive is available in two different colors - Cream (Straw) and and Black (Negra)
We have a wide range of product formulation and cartridge type to virtually match any of our competitors products. Contact us for us to correctly cross reference the product.
