Motion Sensor for LED Light Strip Channel Covers
Sensor only ~ LED strip and all other accessories sold separately
Description

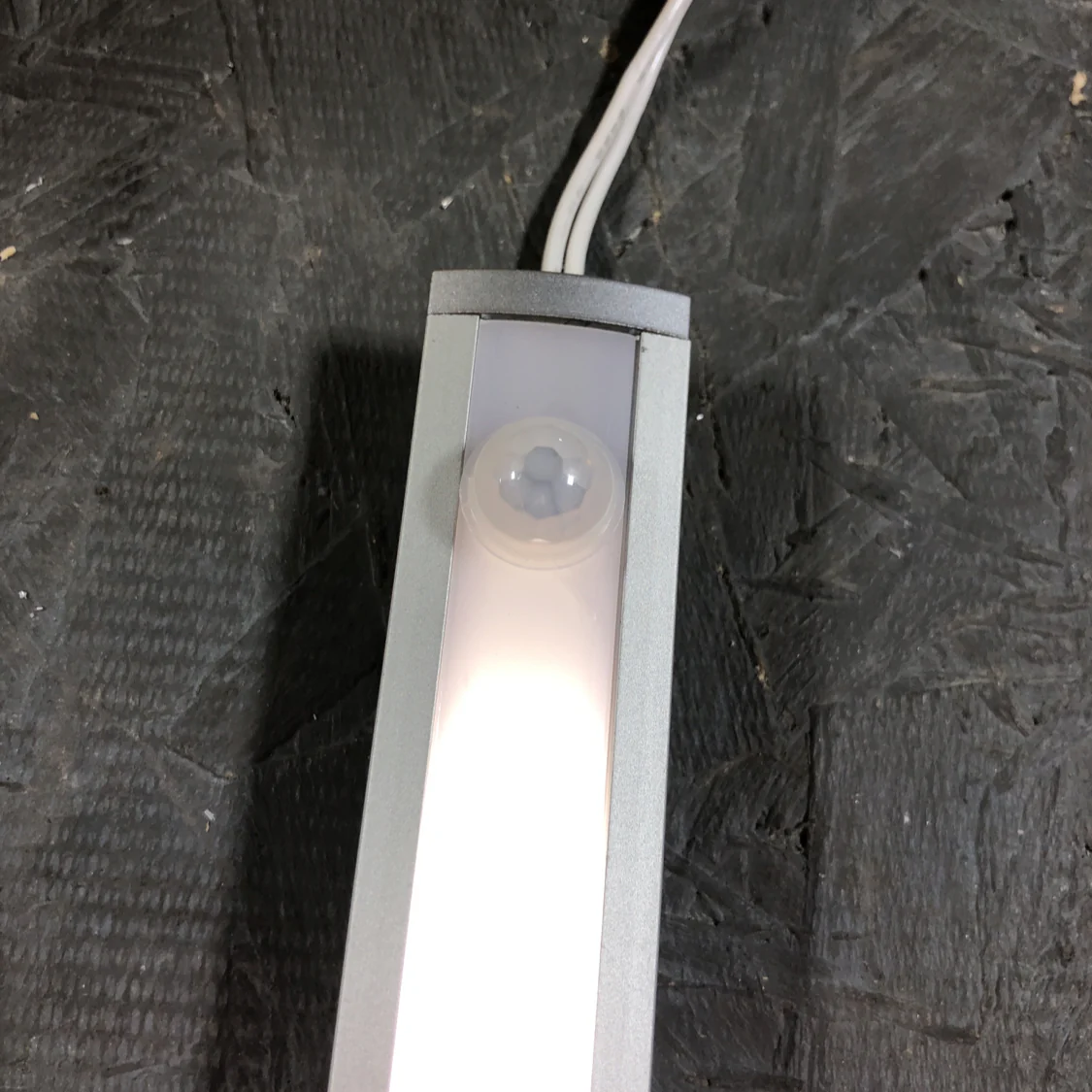

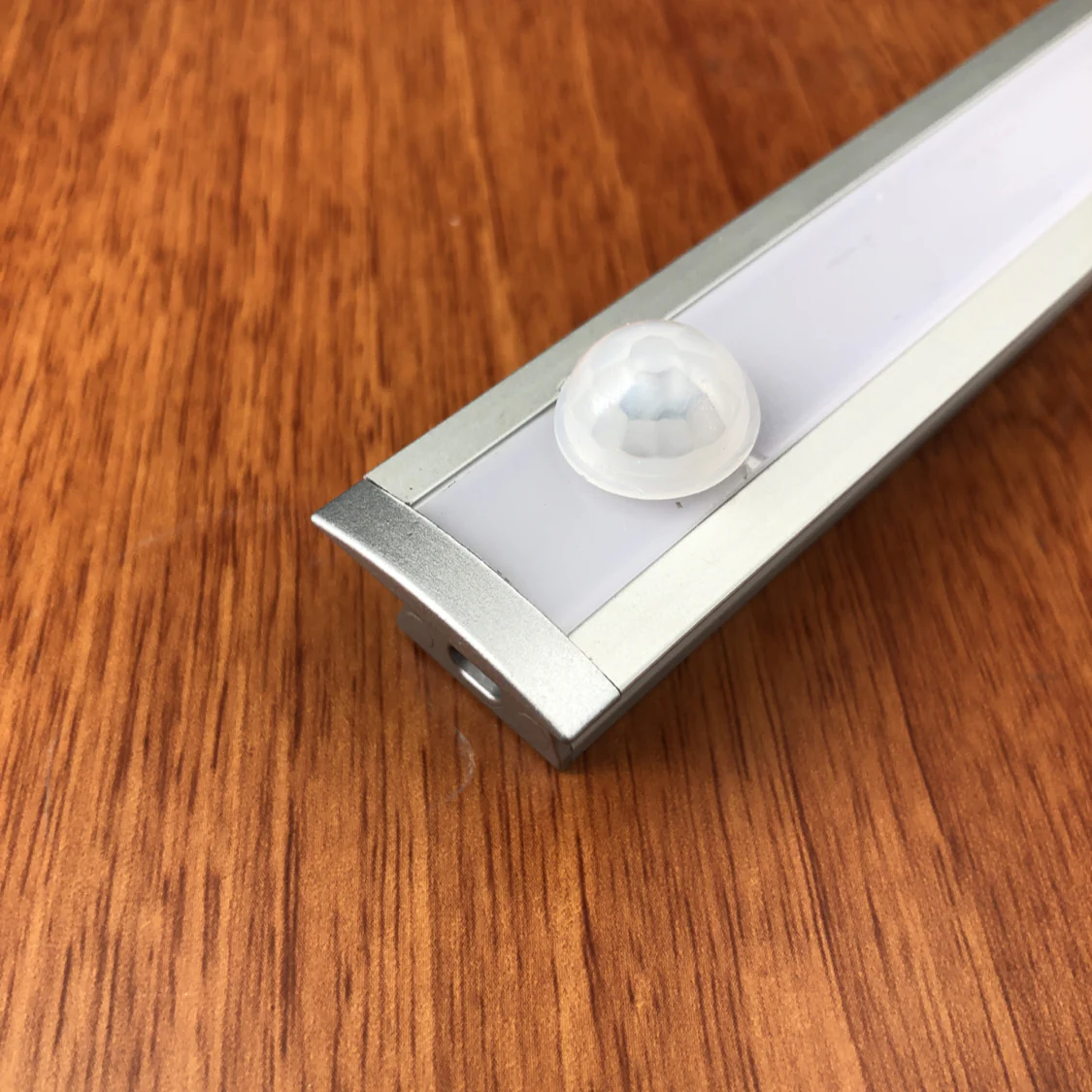

This small motion sensor unit for LED light strips can be inserted inside most of our LED channels. The motion sensor for LED light strip unit is activated on detecting movement from a distance of approximately 2.5 meters (8ft) and at a 90° angle.

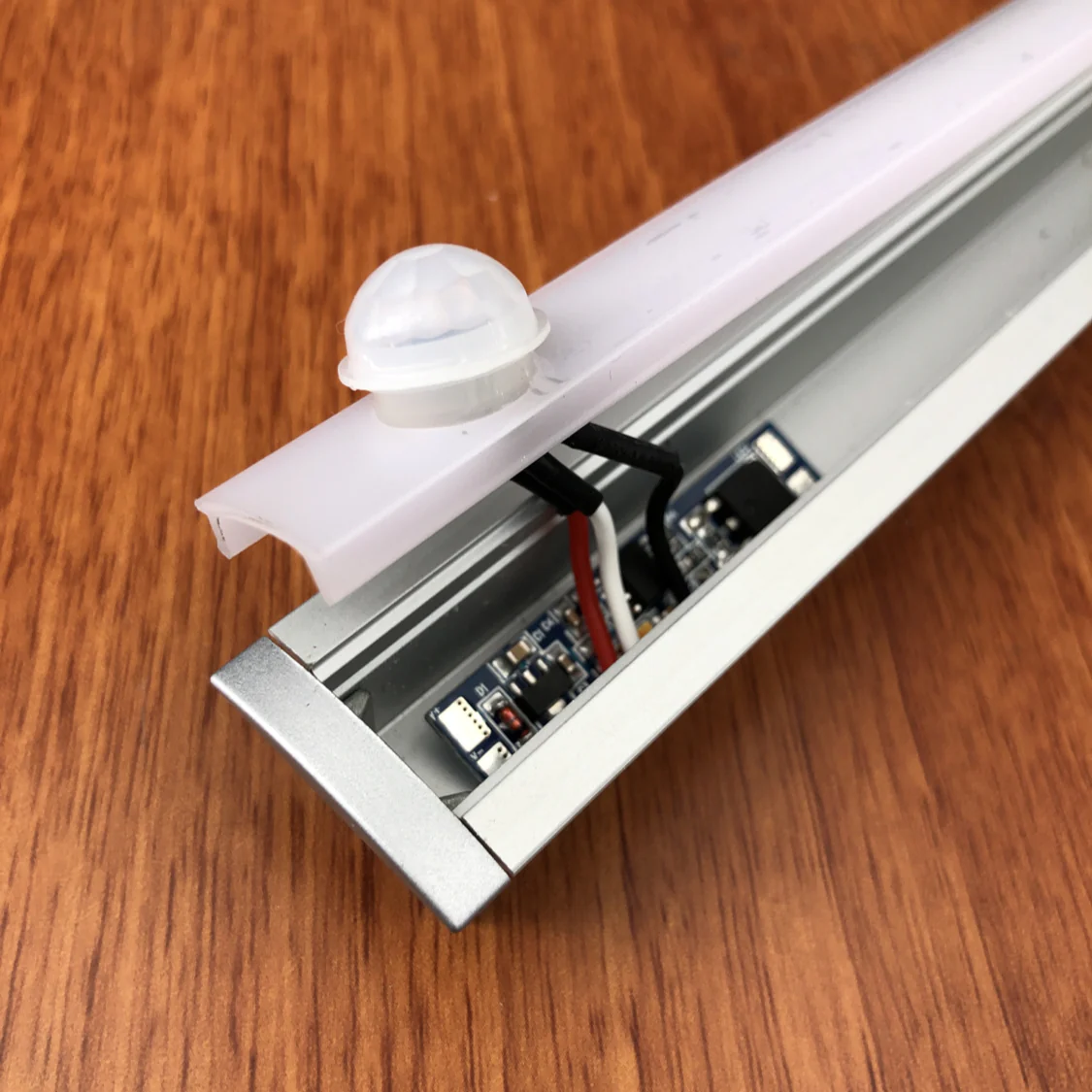

If you need discreet presence detection for your LED lights, this sensor module will solve your problem. Wiring is simple because it fits right into the LED channel with the LED strip. Use this presence sensing switch to automatically control LED strip lights in your closet or walk-in cupboard, or even use it to create automatic basement lights.
General specifications
- Package contents: 1 sensor module
- Operating voltage: 12V or 24V LED strips
- Maximum current: 10A
- Maximum power: 120W (12V), 240W (24V)
- Connection type: Solder pad
- Dimensions:
- Length: 43mm (1.7")
- Width: 10mm (0.4")
- Height: 16mm (0.6") - 45mm (1.8")
- Sensing range: 2.5m (8ft)
- Off delay period: 40 seconds (Once this sensor stops detecting movement, the LED strip will turn off after 40 seconds.)
- It is necessary to make a 1/2" hole in the LED channel cover for the sensor "eye" to fit through.
- Environmental protection: IP20 Indoor
- Guarantee: 2 years
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request
