Profile only ~ diffusers and all other accessories are sold separately

Description

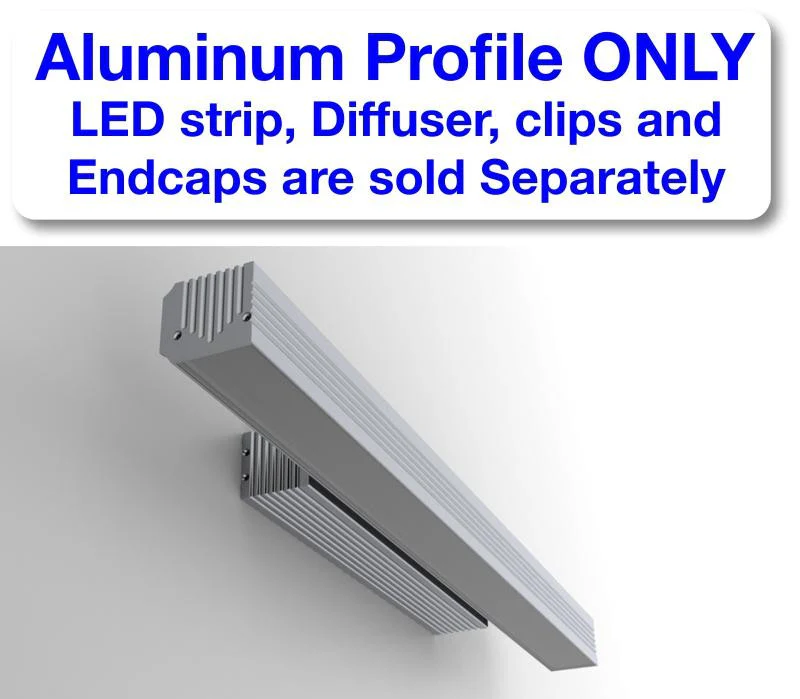

Linear LED Wall Sconce Channel ~ Model PL35S

This is a wall installed, linear wall sconce that shines light downwards. We also have a model — the PL35D — that shines out two sides, i.e., up and down.

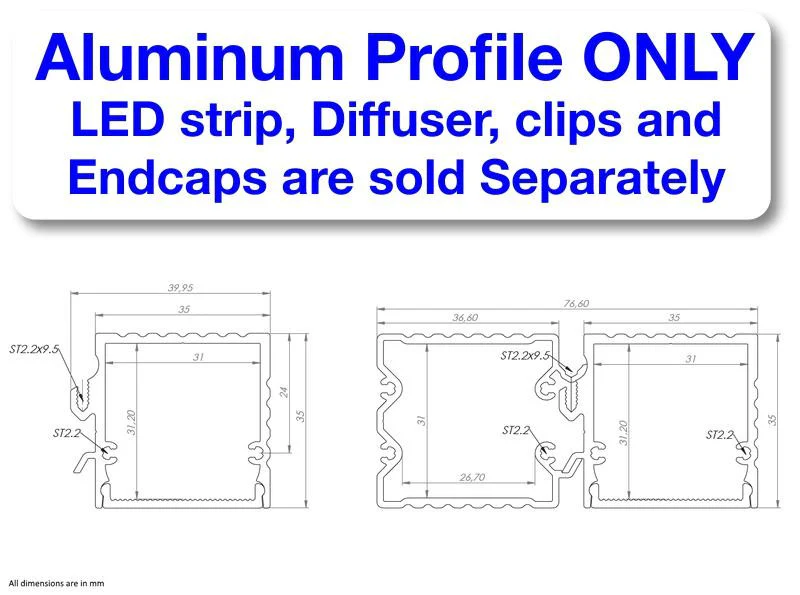

You can install the LED Wall Sconce Channel with a hiding base (see accessories) to conceal the power supplier. We make the hiding base from aluminum and it matches the profile design. You can screw it directly onto the wall surface.

You can connect the hiding base mechanically to the LED Wall Sconce Channel using a few self-threading screws (approximately ST2.2x9.5mm). Moreover, each of the hiding base and LED Wall Sconce Channel has end caps that you can fix on either end to complete the sconce light fixture.

The Linear LED Wall Sconce Channel and the hiding base are sold separately, as well as the end caps. Additionally, the LED Wall Sconce Channel can easily carry LED strip with a load of up to 30 Watts per meter (9.15 watt per foot).

This unit is used widely to build custom LED Wall Sconce fixtures using our Tridonic led strip because of the LED strip's high led population that finishes the product with a homogenous finish.

This LED Wall Sconce Channel is also suitable for housing Lifx and Phillips Hue strip to create awesome wall lighting ideas and smart wall lights.

Downloads

• Product brochure
• Installation instructions

Important Notes

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.

• You can easily cut LED profiles by hand or by machine.

• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.

• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs.

• The Linear LED Wall Sconce Channel comes in 2-meter length and can be cut to any size.

• If you need assistance in designing your sconce light, you are welcome to contact us for help.
