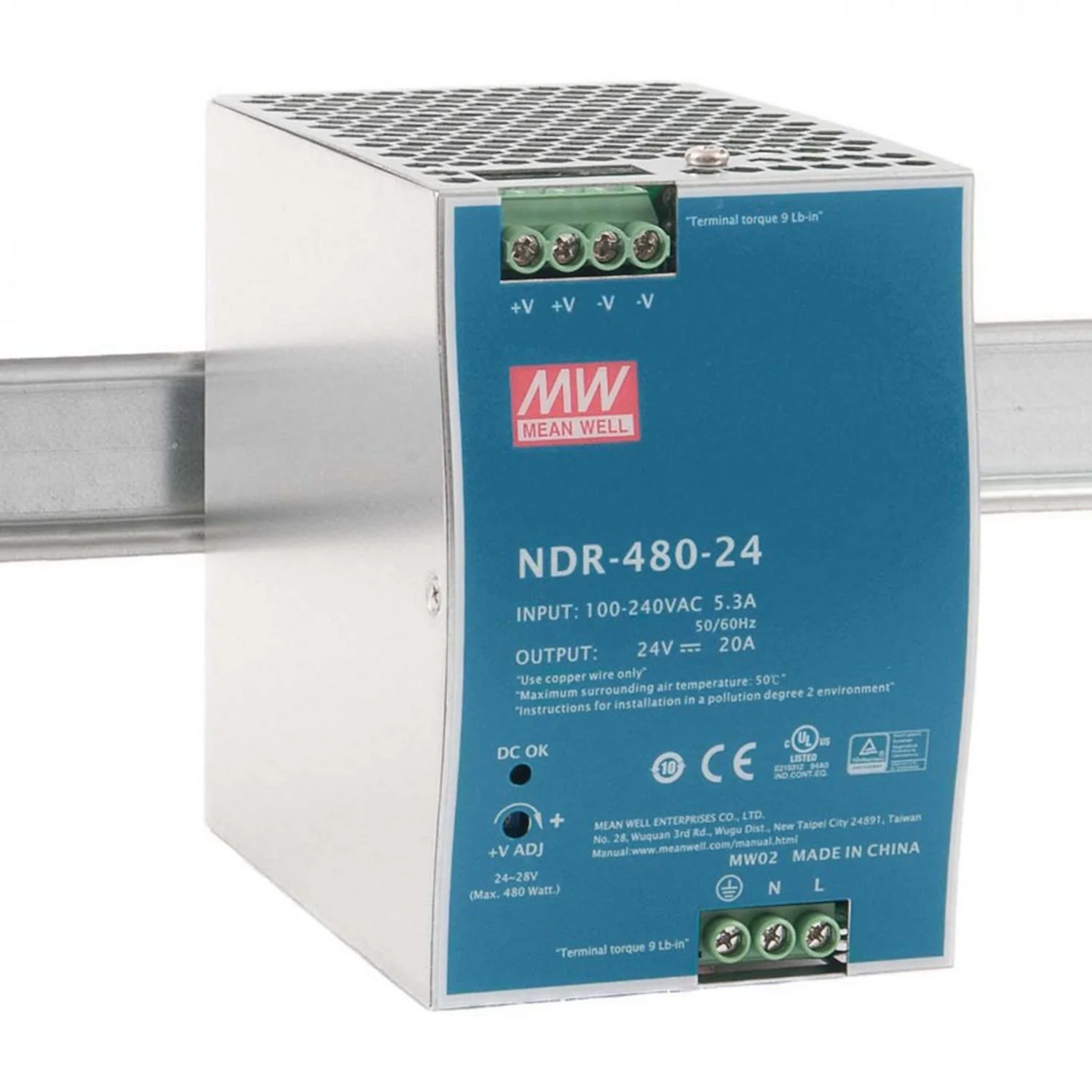

24V DC DIN Rail Power Supply ~ Meanwell NDR Series
power supply only ~ all other accessories sold separately
Description
DIN-Rail 24V mounted AC/DC power supplies are the appropriate solution for installations where the power supply (or power supplies) will be mounted in an electrical cabinet along with other distribution switchgear. Projects such as commercial LED lighting and large residential LED lighting are good examples of applications that use these Meanwell 24V rail-mount power supplies.
The Meanwell 24V is brand represents a reputable manufacturer of quality switch-mode power supplies. Their NDR Series 24V DIN-rail power supplies are a dependable choice of economical but reliable power supplies which are available in a selection of current ratings to suit most applications. These switch-mode power supplies (SMPS) offer some attractive features for LED lighting applications:
The NDR series' universal input voltage means a single wide range AC supply input which prevents input voltage selection mistakes. They accept AC input supplies from 90V to 264V and 43Hz to 63HZ which makes them compatible with almost any common AC supply in North America.
The adjustable output voltage allows you to increase the output voltage from the nominal 24V up to 28V to compensate for voltage drop on the wiring to your LED lights. This means that your LED fixture will be supplied with the full 24V that it requires and can therefore operate at optimum brightness.
Comprehensive electrical protection features guard against short circuit, overload, over voltage and over temperature conditions to ensure a reliable and stable source of power for your LED lighting. Upgrade your power supply with our Meanwell 24V NDR Series.
General specifications
- Input voltage: 90-264V AC / 47-63Hz (wide-range)
- Output voltage: 24V DC nominal (adjustable 24-28V DC)
- Overload protection: 105-130% overload, constant current protection with auto-recovery
- Features: Active power factor correction (PFC)

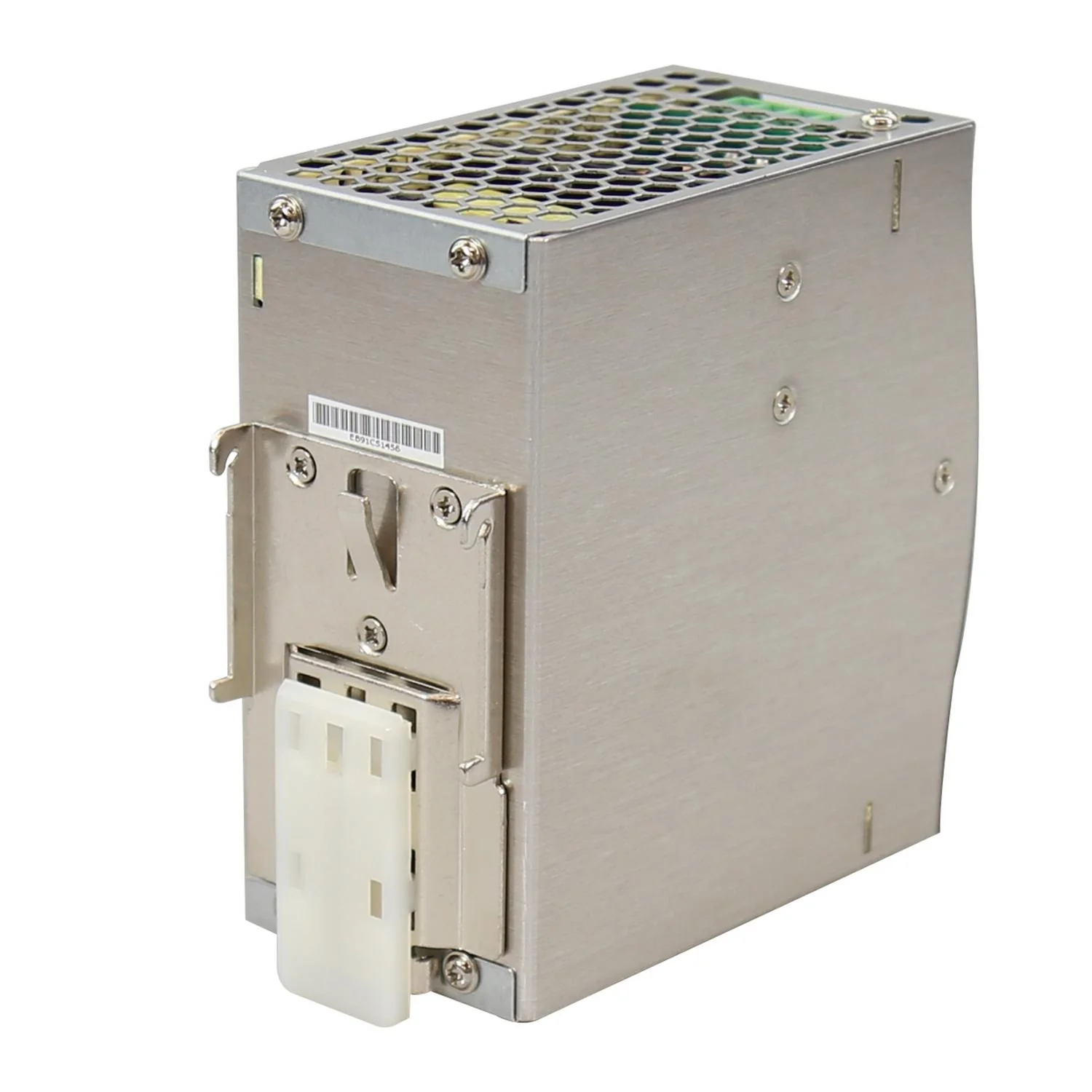

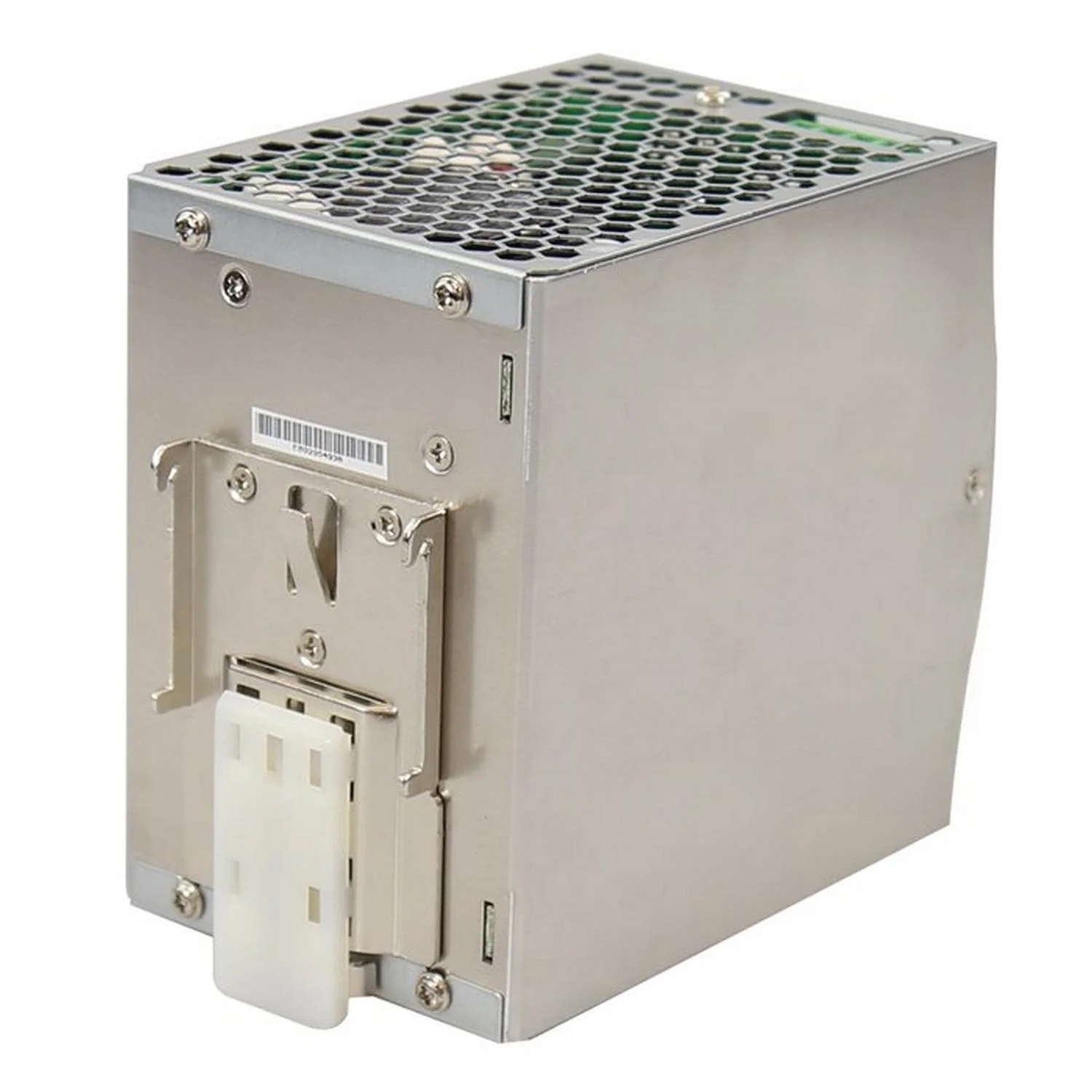

- Mounting: DIN rail (TS-35/7.5 or TS-35/15)
- Approvals: UL 508, EN 62368-1, IEC 60950-1
- Warranty: 3 years
| NDR-240-24 | NDR-480-24 | |
|---|---|---|
| Power: | 240W | 480W |
| Output current: | 10A | 20A |
| Dimensions (WxHxD): | 63 x 125.2 x 113.5mm (2.48" x 4.93" x 4.47") |
85.5 x 125.5 x 128.5mm (3.37" x 4.93" x 5.06") |
| Weight: | 1.0kg (2.2lb) | 1.5kg (3.3lb) |
Downloads
- NDR series installation manual
- NDR-120-24 cut sheet
- NDR-240-24 cut sheet & test report
- NDR-480-24 cut sheet & test report
Important notes
-
We ship items in stock the same day from Knoxville, Tennessee, United States.
-
Bulk pricing is available on request.
Common search terms
DIN-rail power supply, Rail-mount AC/DC power supply, Switch-mode power supply for rail mounting, Switch cabinet LED power supply, DIN-rail LED power supply, Industrial power supply for LED lights, Wide range LED power supply
