0-10V DC to Casambi Wireless Scene Selector ~ Model Scene10cas
0-10V DC to Casambi Wireless Scene SelectorĀ only ~ power supply and other accessories are sold separately
Description
The Scene10cas is an interface that enables remote Casambi Scene selection using analog 0-10V DC control signals. This means you can use a 0-10V controller to select scenes on a Casambi Bluetooth mesh network.

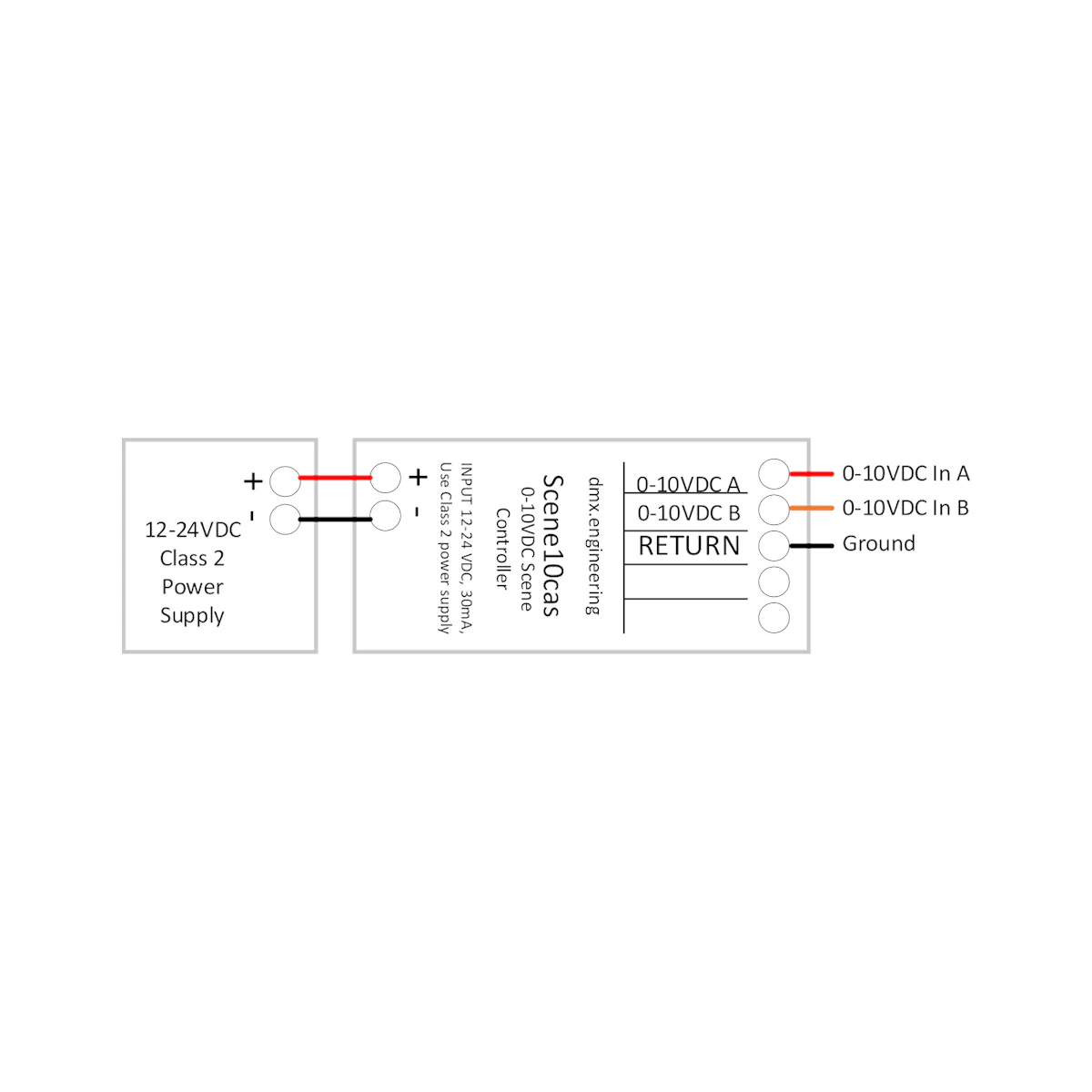

Simply connect your Scene10cas to a 12-24V DC power supply and one or two 0-10V DC analog control signals. Then use the free Casambi smartphone app to configure your custom Casambi scene and intensity mapping.
To provide scene selection based on the signal level, the Casambi Scene10cas divides the first 0-10V signal into voltage segments, and the scene is then selected depending on the voltage level. The second channel provides an optional 0-100% intensity selection for the selected Casambi Scene.
Voltage trim and hysteresis values are also configurable, to enable installations where the 0-10V signal levels may not be in full range or are noisy due to installation factors.
Casambi is a smart home network that offers various devices for many purposes, and the Scene10cas 0-10V DC device allows you to select Casambi Scenes with analog 0-10V DC signals. Whether you're looking to set the mood in your living room or optimize energy consumption in your workspace, Casambi has something to offer.
General specifications
- Ecosystem: Casambi (Bluetooth mesh)
- Power supply: 12-24V DC Class 2
- Outputs:
- Casambi wireless
- Inputs:
- 2x 0-10V DC (two-wire signal, common ground)
- Applications: 1x Casambi Scene selection and Intensity control
- Dimensions: 73 x 30 x 18mm (2.2 x 1.2 x 0.7")
- Note: To ensure effective Bluetooth signal, the Casambi Wireless Scene Selector ~ Model Scene10cas should not be installed in a metal junction box
- Approvals: ETL Listed, UL 916 Listed, FCC Approved
- Designed and manufactured in the USAĀ
